Application:Outdoor
Color:1R1G1B
Panel Size:192*192mm
Supplier Type:Original manufacturer, ODM, OEM
Media Available:Photo
Place of Origin:Guangdong, China
Brand Name:TOOSEN
use:advertising publish, welcome display
Pixel Pitch:P6
Specification:custom

Description

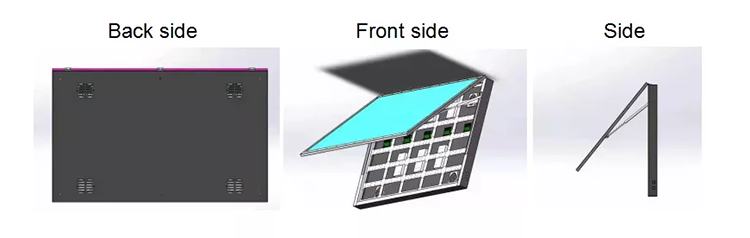

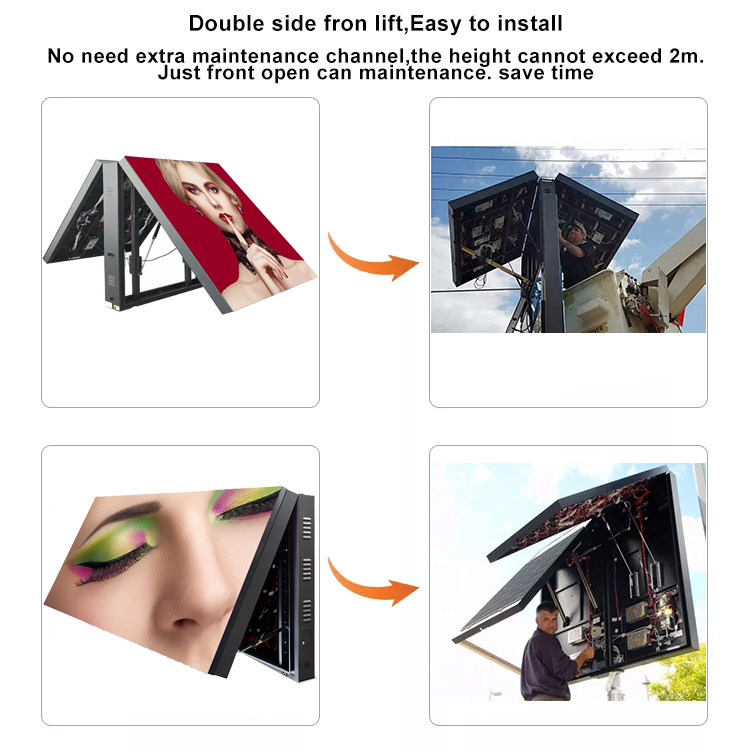

Front maintenance led display cabinet, when there is any failure in the display, open the flip of the display from the front, you can see the internal structure of the display , so as to carry out inspection and maintenance. Normally, after the flip of the display is opened, it is Fixed by pneumatic rod. Install the front-maintained cabinet against the wall, with holes for screwing on the back of the cabinet, or use a lifting ring. This installation method is suitable for the environment where the height is less than 2m. The size of the screen is small, and there is no maintenance space behind. Easy to maintenance / Back side no need space / Safe installation

Our Features:

1. Front access/Front service LED Display 2. High brightness, visible even with direct sunshine 3. High water proof and dust proof, IP65 both front and rear side 4. Having good lighting accordance and no mosaic 5. Getting vivid effect within any position of the viewing range 6. Any LED in died pixel can be respectively repaired, which reduce the cost of the display maintenance.

a pl



Cases

Malaysia -April 2022

Malaysia -April 2022

Canada - May 2022

Canada – May 2022

Canada - May 2022

Canada – May 2022

India - August 2020

India – August 2020

Australia-April 2020

Australia-April 2020

Parameters

Technical Parameters

Product Name

P2.5

P3

P4

P5

P6

P8

P10

Use Place

Indoor / Outdoor

Composition

1R1G1B

1R1G1B

1R1G1B

1R1G1B

1R1G1B

1R1G1B

1R1G1B

LED Encapsulation

SMD1415

SMD1415

SMD1921

SMD1921

SMD3535

SMD3535

SMD3535

Pixel Density/(dots/m²)

160000/m²

11111m²

62500dots/m²

40000dots/m2

27777dots/m²

15625dots/m²

10000/m²

Size of Module(mm*mm)

320*160mm

192*192mm

320*160mm

320*160mm

192*192mm

320*160mm

192*192mm

Drive Method

1/16s

1/16s

1/10s

1/8s

1/8s、1/4s

1/5s

1/2s、1/4s

Viewing Angle Level

H:>160°Optional,V:>120Optional

Refresh Rate

≥3840Hz

Brightness

≥5000cd/m²

Cabinet Size

640mm*640mm*140mm/960mm*960mm*140mm

Cabiner Weight

10.5KG/35KG

Ontrol system

Synchronous System

Humidity

10%~95%
