Application:Outdoor
Color:1R1G1B
Panel Size:320*160mm
Supplier Type:Original manufacturer, ODM, OEM
Media Available:Photo
Place of Origin:Guangdong, China
Brand Name:TOOSEN
use:advertising publish, welcome display
Pixel Pitch:P10
Specification:custom

Description

Products Features

> 3 times aging process. Salty spray test, high voltage test, varying temperature test, waterproof test, vibration test. > Long service time and low attenuation by applying dual channels for heat dissipation. > High protection grade of IP65 achieved by patented mask design with waterproof and dust proof faction. > High contrast, ideal gray scale, presenting the most real pictures. Supporting brightness and color correcting of the whole screen.

Great Durability and Stability

Designed for fixed outdoor installation, LED video panels are robust and durable, high qualified to withstand any harsh environment factors such as constant vibrations, varying temperatures and severe weather conditions.

> High brightness LED is used for outdoor led display, keeps the display content visible even if facing the strong sunshine
directly. > Constant current chip driving reduces the power consumption and prompts the stability. It makes Energy Saving LED
display by using high efficiency IC driver.

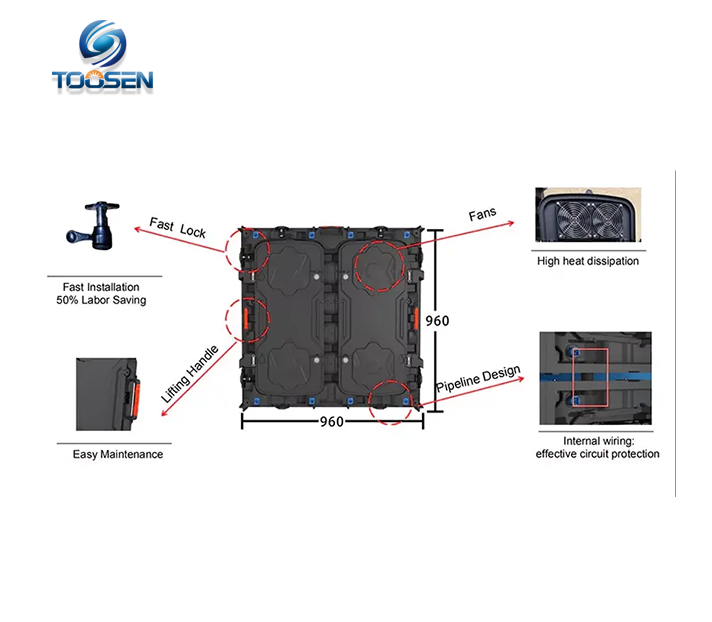

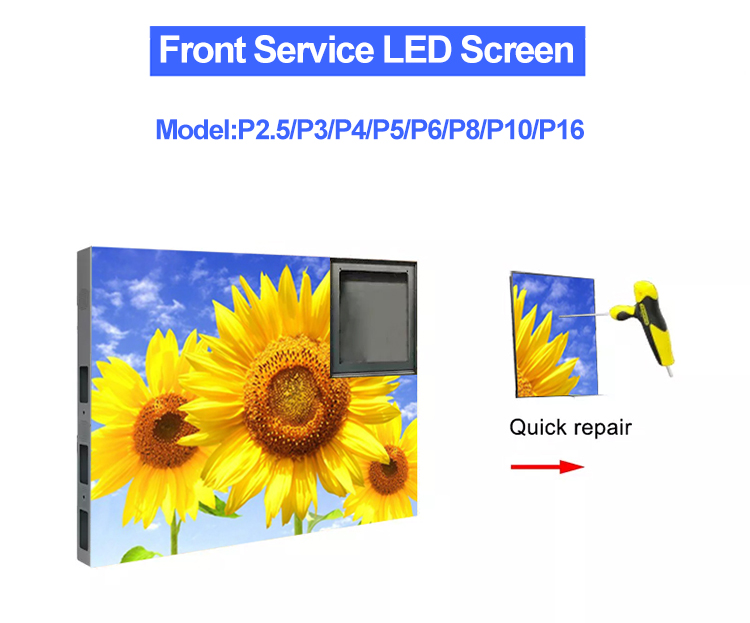

Front and Rear Maintenance for Options

LED video display supports front or rear service access for specific installation. The front installation and maintenance panel design easier your installation procedures and much convenient to maintain. It is the perfect choice for against the wall installation or any other environment where requires no rear maintenance space.



Cases

Malaysia -April 2022

Malaysia -April 2022

USA- February 2022

USA- February 2022

New Gabon- August 2020

New Gabon- August 2020

USA- June 2021

USA- June 2021

Canada - May 2022

Canada – May 2022

Australia-April 2020

Australia-April 2020

Parameters

Technical Parameters

Product Name

P2.5

P3

P4

P5

P6

P8

P10

Use Place

Indoor / Outdoor

Composition

1R1G1B

1R1G1B

1R1G1B

1R1G1B

1R1G1B

1R1G1B

1R1G1B

LED Encapsulation

SMD1415

SMD1415

SMD1921

SMD1921

SMD3535

SMD3535

SMD3535

Pixel Density/(dots/m²)

160000/m²

11111m²

62500dots/m²

40000dots/m2

27777dots/m²

15625dots/m²

10000/m²

Size of Module(mm*mm)

320*160mm

192*192mm

320*160mm

320*160mm

192*192mm

320*160mm

192*192mm

Drive Method

1/16s

1/16s

1/10s

1/8s

1/8s、1/4s

1/5s

1/2s、1/4s

Viewing Angle Level

H:>160°Optional,V:>120Optional

Refresh Rate

≥3840Hz

Brightness

≥5000cd/m²

Cabinet Size

640mm*640mm*140mm/960mm*960mm*140mm

Cabiner Weight

10.5KG/35KG

Ontrol system

Synchronous System

Humidity

10%~95%
